Ecco le nuove schede madri ASUS e ROG con chipset Intel X99

In concomitanza con l’arrivo dei nuovi processori Intel “Haswell-E”, dotati di Socket 2011 e destinati al settore high-end, ecco arrivare le nuove schede madri di Asus e Republic of Gamers dotate di chipset Intel X99.

Tra le principali differenze dell’X99 rispetto al precedente X79 ricordiamo l’avvento delle nuove memorie DDR4, che garantiranno in futuro maggiori velocità e capienza doppia rispetto agli attuali moduli DDR3. Partiamo analizzando la nuova Rampage V Extreme, soluzione firmata Republic of Gamers e dedicata al gaming estremo e all’overclocking!






Rampage V Extreme: Per un sistema gaming estremo e l’overclock

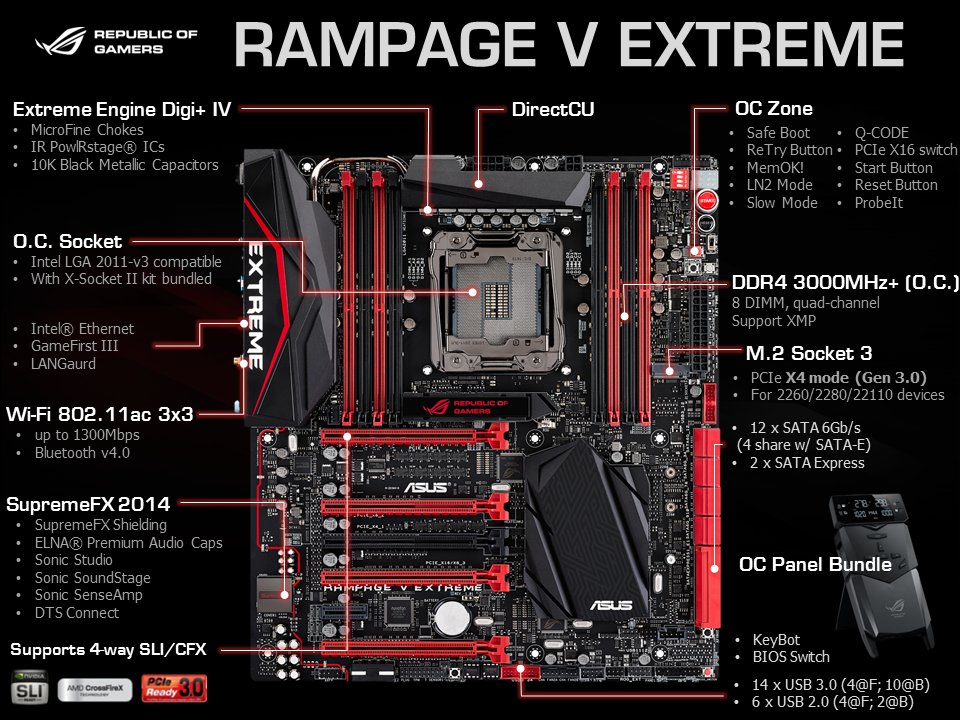

R5E_preview

Tra le caratteristiche principali della nuova Rampage V Extreme troviamo il supporto alle DDR4 in modalità quad channel, fino a 64 GB a una frequenza di 3000 MHz (e oltre in OC), il supporto al 4-way SLI e CrossfireX, l’audio SupremeFX 2014 con Sonic Radar, modulo WiFi 802.11ac 3×3, LAN Intel Gigabit con funzioni GameFirst III e LANGuard e la funzione ROG KeyBot, presente su tutte le nuove schede della serie ROG, che consente di impostare macro personalizzate (fino a 15 tasti di seguito). E’ presente anche lo slot M.2 PCI-E x4, con una banda passante fino a 32 Gbps, che consente la connessione di un SSD di nuova generazione. Sono inoltre presenti otto porte SATA III e due porte SATA-Express con velocità fino a 12 Gb/s.

la nuova Rampage V Extreme dispone di un sacco di features che consentono di ottenere prestazioni molto elevate e un margine di overclock decisamente sopra la media, grazie al nuovo sistema di alimentazione Extreme Engine Digi+ IV con regolazioni digitali super precise e condensatori 10K Black Metallic. Un’altra caratteristica di questa scheda madre, comune in realtà a tutte le nuove schede madri Asus X99, è l‘OC Socket: si tratta di un socket esclusivo ASUS, che utilizza dei pins aggiuntivi per collegare i processori Haswell-E a un circuito proprietario sviluppato da ASUS che consente di aumentare le frequenze di overclock delle memorie e fornire un’alimentazione aggiuntiva in fase di OC, aumentando così la stabilità nel caso di overclock molto spinti. Non per niente la nuova Rampage V Extreme detiene già alcuni record, che potete vedere a questo link Ecco di seguito le specifiche:

ASUS ROG Rampage V Extreme

  • Processor/CPU socket
  • LGA 2011-v3 socket for new Intel® Core™ i7 processors

  • Chipset
  • Intel X99 Express

  • Memory
  • Quad-channel memory architecture; 8 x DIMMs, up to a maximum of 64GB, DDR4 3300MHz (OC)

    Intel Extreme Memory Profile (XMP) supported

  • Expansion slots
  • 4 x PCIe 3.0/2.0 x16 slots (supports x16, x16/x16, x16/x8/x8 or x16/x8/x8/x8 mode with 40-lane CPU; x16, x16/x8, x8/x8/x8 mode with 28-lane CPU)

    1 x PCIe 2.0 x16 slot (maximum x4 mode)

    1 x PCIe 2.0 x1 slot

  • Multi-GPU support
  • 4-way, 3-way and 2-way NVIDIA® SLI™ and AMD® CrossFireX™

  • Storage
  • 2 x SATA Express ports

    8 x SATA 6Gbit/s ports

    1 x M.2 Socket 3 with M Key, type 2260/2280/22110 storage devices supported (PCI Express SSDs only)

  • Networking/LAN
  • Intel® I218-V Gigabit LAN with GameFirst III and ASUS LANGuard

  • USB
  • 14 x USB 3.0 ports (10 on back panel, 4 mid-board)

    6 x USB 2.0 ports (2 on back panel, 4 mid-board)

  • Audio
  • ROG SupremeFX 2014 8-channel high-definition audio

    – SupremeFX shielding technology

    – ELNA® premium audio capacitors

    – Jack-detection, multi-streaming, front-panel mic jack-retasking

    – Optical S/PDIF out port at back panel

    Sonic SoundStage / Sonic SenseAmp / Sonic Studio / Sonic Radar II /

    DTS Connect

  • Dimensions / form factor
  • EATX, 12-inch x 10.7-inch (30.5cm x 27.2cm)




X99 DELUXE, X99-PRO E X99-A – Per una Workstation end-level veloce e affidabile

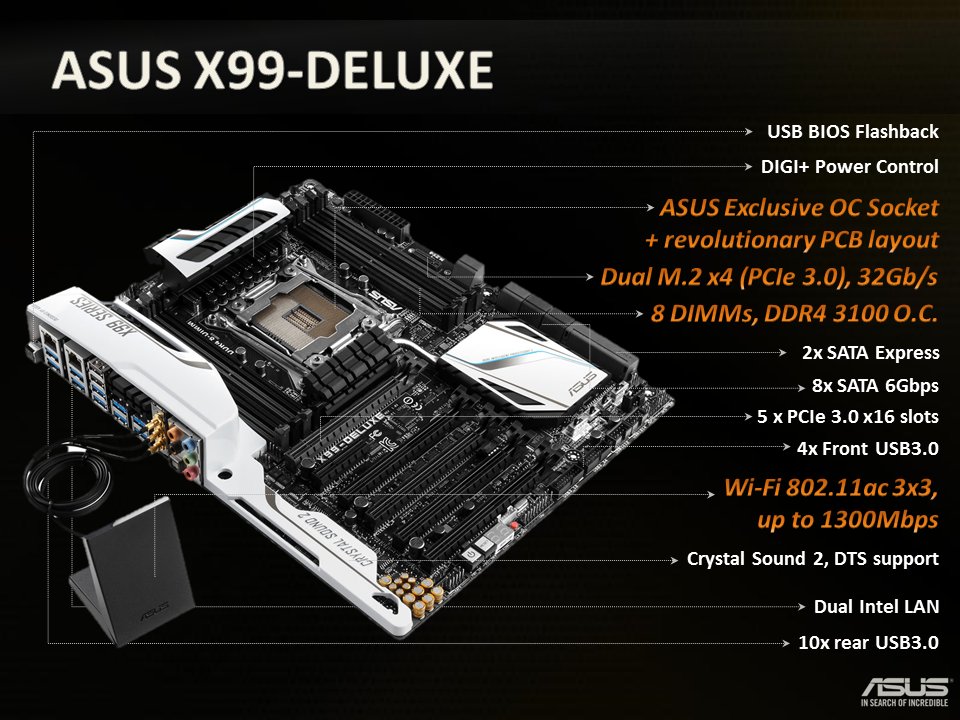

X99-Deluxe-Overview1

Le schede madri Asus X99 sono studiate per workstation professionali e sistemi end-level ad elevata stabilità ed affidabilità, ma dispongono comunque di caratteristiche analoghe alla ROG Rampage V Extreme, come l’OC Socket e il sistema di alimentazione Digi+, che garantiscono un ampio margine di overclock. Sono disponibili in tre versioni: la X99 DELUXE è la più accessoriata e dispone di connettività Wi-Fi 802.11ac integrata 3×3 (che può spingersi a velocità di 1300Mbps con router compatibili come RT-AC68U o RT-AC87U), 14 porte USB 3.0 e 6 USB 2.0, codec audio Crystal Sound 2 con supporto DTS, Dual LAN Intel Gigabit, 8 SATA III, 2 SATA Express e ben due Slot M.2 PCI-E x4 per installare gli SSD di nuova generazione (il secondo è installabile tramite l’apposito adattatore PCI-E fornito a corredo). Insomma una soluzione meno improntata al gaming ma con più funzionalità dedicate all’ambito professionale, in grado di garantire comunque prestazioni davvero eccellenti. Ecco di seguito le specifiche delle nuove schede madri Asus X99:

ASUS X99-Deluxe

  • Processor/CPU socket
  • LGA 2011-v3 socket for new Intel® Core™ i7 processors

  • Chipset
  • Intel X99 Express

  • Memory
  • Quad-channel memory architecture; 8 x DIMMs, up to a maximum of 64GB, DDR4 3200MHz (OC)
    Intel Extreme Memory Profile (XMP) supported

  • Expansion slots
  • 40-lane CPU:
    5 x PCI Express 3.0/2.0 x16 slots (single at x16, dual at x16/x16, triple at x16/x16/x8**, quad at x8/x8/x16/x8 or quintuple at x8/x8/x8/x8/x8 mode)
    1 x PCI Express 2.0 x4 slot (compatible with PCI Express x1 and x4 devices)
    28-lane CPU:
    3 x PCI Express 3.0/2.0 x16 slots (single at x16, dual at x16/x8 or triple at x8/x8/x8 mode)
    2 x PCI Express 2.0 x16 slots (maximum at x1 mode, compatible with PCI Express x1 devices)
    1 x PCI Express 2.0 x4 slot (compatible with PCI Express x1 and x4 devices)

  • Multi-GPU support
    Up to 3-way NVIDIA® SLI™ and AMD® CrossFireX™
  • Storage
  • 2 x SATA Express ports
    8 x SATA 6Gbit/s ports
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices supported (PCI Express SSDs only)

  • Networking/LAN
  • Intel® I218-V & I211-AT Gigabit LAN
    ASUS Turbo LAN Utility
    3×3 (3T3R) 802.11ac Wi-Fi with ASUS Wi-Fi GO!

  • USB
  • 14 x USB 3.0/2.0 ports (10 on back panel, 4 mid-board)
    6 x USB 2.0/1.1 ports (2 on back panel, 4 mid-board)

  • Bundled accessories
  • ASUS Fan Extension Card
    ASUS Hyper M.2 X4

  • Key features
  • OC Socket, 5-Way Optimization by Dual Intelligent Processors 5, 5X Protection, UEFI BIOS, Turbo App, Turbo LAN and Crystal Sound 2.

  • Dimensions / form factor
  • ATX, 12-inch x 9.6-inch (30.5cm x 24.4cm)

ASUS X99-A

  • Processor/CPU socket
  • LGA 2011-v3 socket for new Intel® Core™ i7 processors

  • Chipset
  • Intel X99 Express

  • Memory
  • Quad-channel memory architecture; 8 x DIMMs, up to a maximum of 64GB, DDR4 3200MHz (OC)
    Intel Extreme Memory Profile (XMP) supported

  • Expansion slots
  • 40-lane CPU:
    3 x PCI Express 3.0/2.0 x16 slots (single at x16, dual at x16/x16 or triple at x16/x16/x8)
    1 x PCI Express 2.0 x16 slot (maximum at x4 mode, compatible with PCI Express x1 and x4 devices)
    2 x PCI Express 2.0 x1 slot (compatible with PCI Express x1)
    28-lane CPU:
    3 x PCI Express 3.0/2.0 x16 slots (single at x16, dual at x16/x8 or triple at x16/x8/x4)
    1 x PCI Express 2.0 x16 slot (maximum at x4 mode, compatible with PCI Express x1 and x4 devices)
    2 x PCI Express 2.0 x1 slot (compatible with PCI Express x1)

  • Multi-GPU support
  • Up to 3-way NVIDIA® SLI™ and AMD® CrossFireX™

  • Storage
  • 1 x SATA Express port
    8 x SATA 6Gbit/s ports
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices supported (PCI Express SSDs only)

  • Networking/LAN
    Intel® I218-V Gigabit LAN
    ASUS Turbo LAN Utility
  • USB
  • 10 x USB 3.0/2.0 ports (6 on back panel, 4 mid-board)
    8 x USB 2.0/1.1 ports (4 on back panel, 4 mid-board)

  • Key features
  • OC Socket, 5-Way Optimization by Dual Intelligent Processors 5, 5X Protection, UEFI BIOS, Turbo App, Turbo LAN and Crystal Sound 2.

  • Dimensions / form factor
  • ATX, 12-inch x 9.6-inch (30.5cm x 24.4cm)
